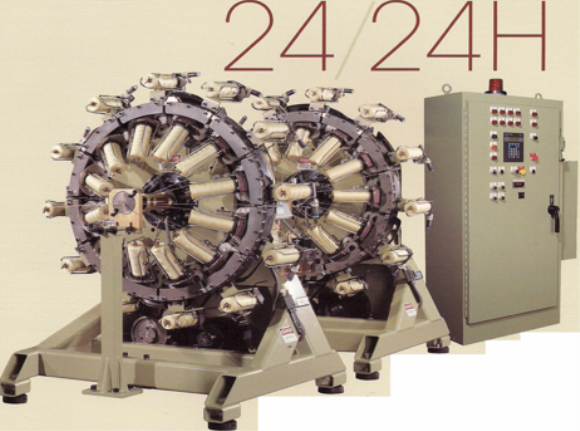

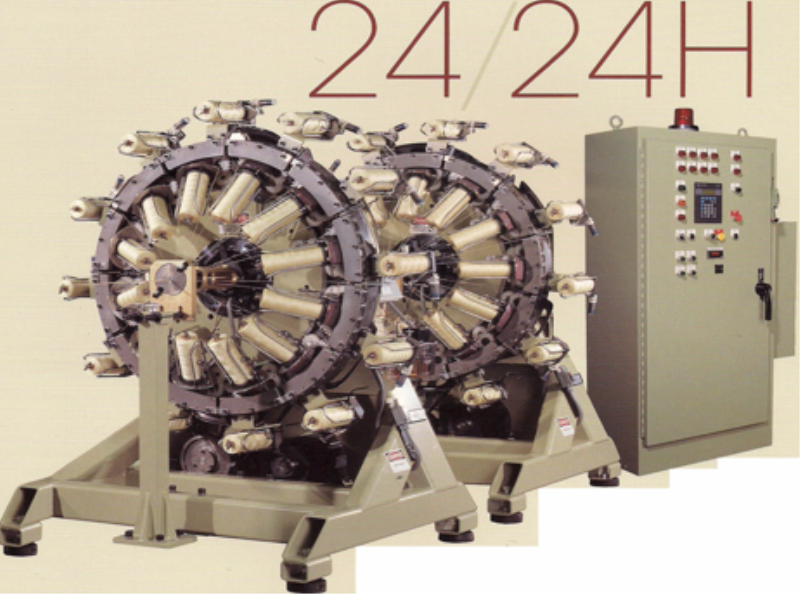

24H/24H Braiding Machine

Product Highlights

The 24/24H is clearly established as the number one choice for the production of textile reinforced high pressure automotive and industrial hose throughout the world.

  • High speed, up to 100 carrier RPM
  • Up to 65.25 cu. in. ( I 070 ern') volume yarn packages
  • Wide range of carrier tensions, 1.0 lb. (.46 kgs.) to 10 Ibs. (4.60 kgs.)
  • A.C. servo drive, PLC technology, push-button or touch screen for process/product information and precise input of pitch control
  • Proven capability to braid all types of yarn reinforcements, both treated and untreated
  • Fast, accurate turnbuckle control for timing adjustment
  • Modular system requires no foundations or mechanical alignment for single or double deck arrangements 8) Reduced downtime and maintenance costs through cam deflection/planetary gear system, automatic lubrication and yarn breakage detection systems
