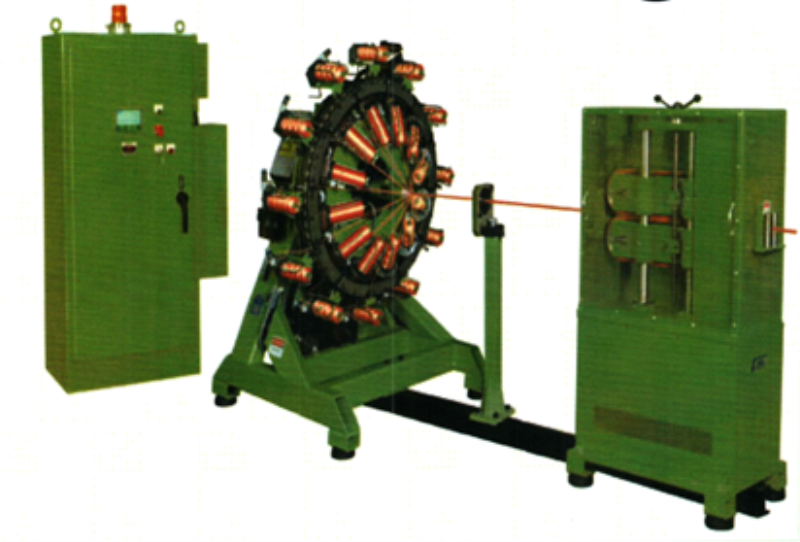

24-H Braiding Machine

Product Highlights

The Karg 24H is clearly established as the number one choice for the production of textile reinforced high pressure automotive and industrial hose throughout the world.

  • High speed, up to 100 carrier RPM
  • Up to 65.25 cu.in (1070 cubic cm) volume yarn packages or bobbins
  • A.C. servo drive PLC technology, touch screen for process/product information and precise input of pitch control
  • Proven capability to braid all types of yarn reinforcements, both treated and untreated
  • Fast, accurate turnbuckle control for timing adjustments
  • Modular system requires no foundations or mechanical alignment for single or double deck arrangements
