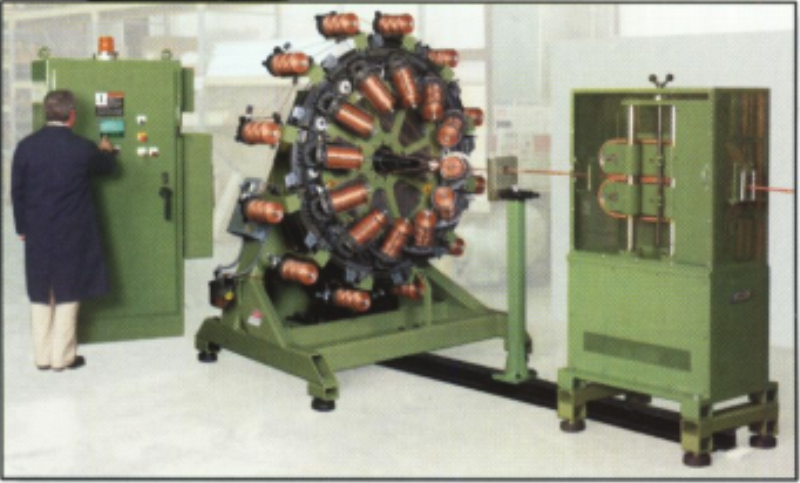

24-HX Braiding Machine

24-HX Braiding Machine

Product Highlights

The Karg 24HX is clearly the most efficient braider for production of long length yarn braided hose!

  • Proven to braid all types of treated and untreated yarns
  • High speed, up to 85 carrier RPM
  • Uses same size capacity bobbin or package for inside & outside carriers
  • High yarn volume on bobbins or packages, up to 3,000 cubic cm with yarn weight of 3.0kgs
  • Fast, easy bobbin or package replacement with patented latch design
  • Bobbin traverse length 21.3cm x 14xm flange diameter
  • Read bobbin traverse length 8.2" (20.8cm) x 5.5" (14 cm)
  • Simple Track Design with modular trolley and yarn center
  • Significantly reduced maintenance costs through the use of simplified planetary gear system
